1. Unit Configuration

(1) 1 JTFB-1200 rubber ring water-cooled molecular pump.

(2) 1 2X-70 rotary vane pump.

(3) 1 BSJ150L Roots pump.

(4) 2 sets of KF25 pneumatic angle valves.

(5) 1 set of 200 baffle valves.

(6) 1 set of high vacuum compound vacuum gauge. (Including KF40 ionization gauge, KF16 thermocouple gauge)

(7) 3 bellows.

(8) 1 set of rack with casters and enclosure.

(9) 1 set of PLC control system.

(10) Working voltage: 380V

2. Unit Appearance

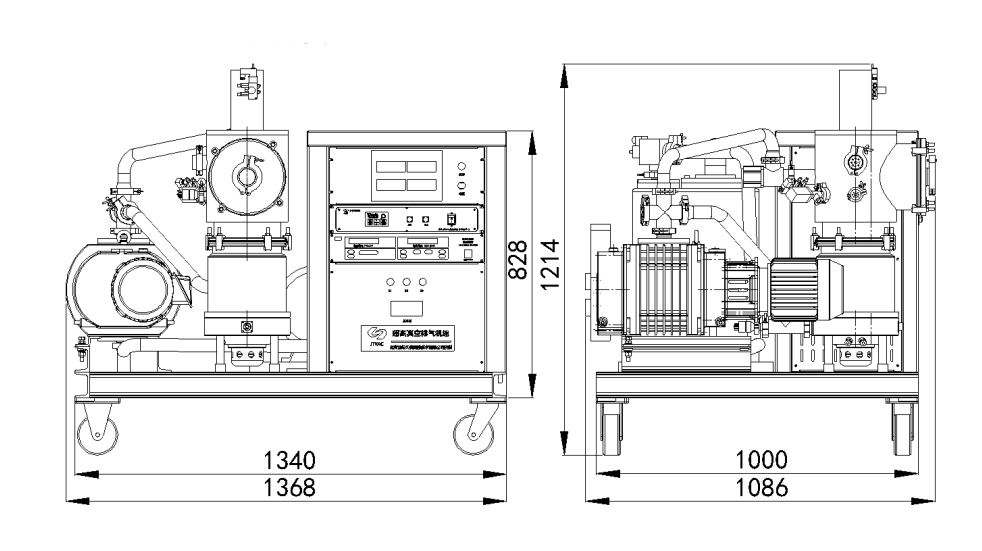

3. Unit dimensions
